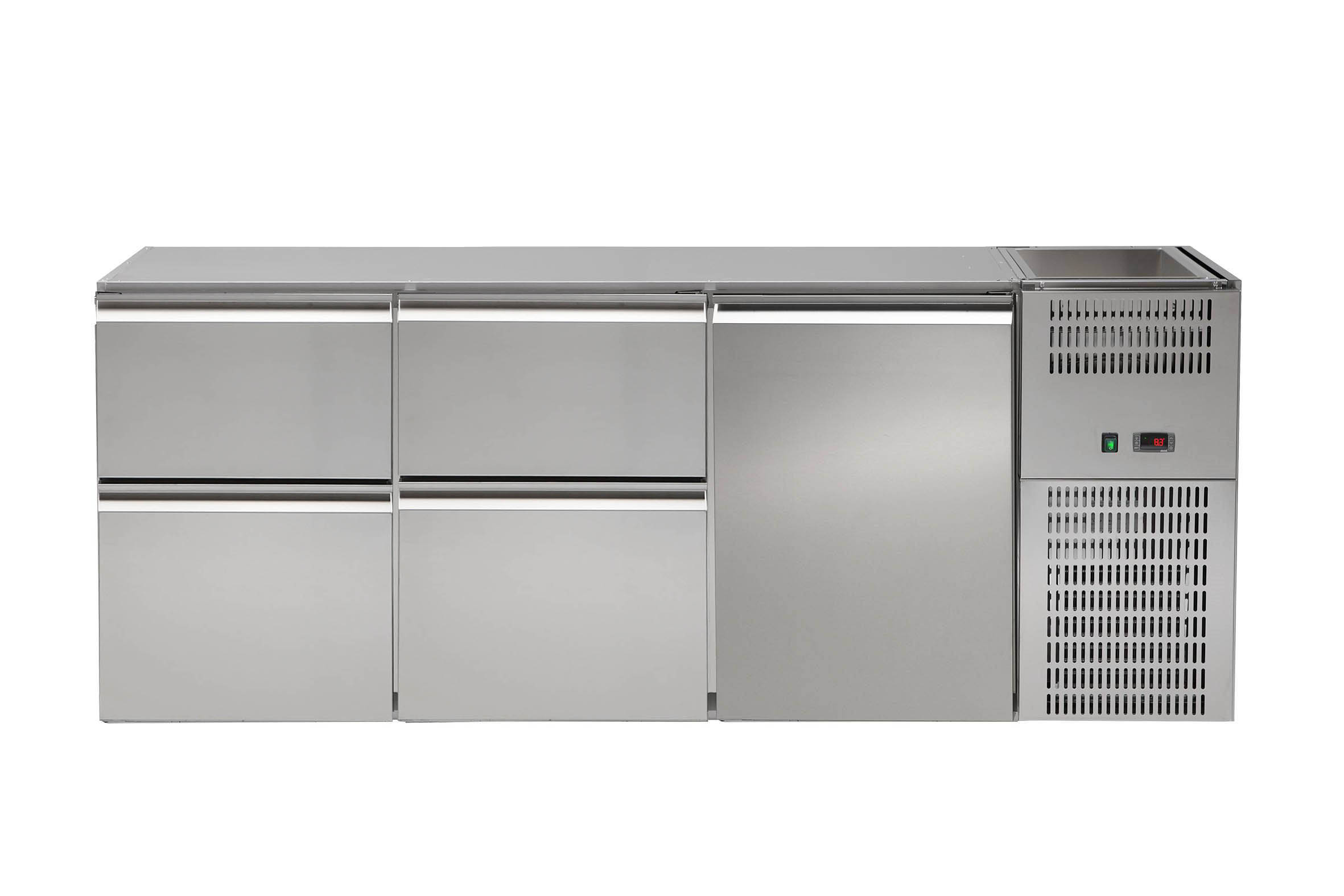

Refrigerated Beverage Counter, 3 RE-FK-AG, REGD 314E

Refrigerated Beverage Counter, 3 RE-FK-AG, REGD 314E

1 door, 4 drawers, ready to plug in,
1 door, clear WxH: 480x740 mm
2loading racks (2/5+3/5)
Temperature range: +2°/+8°C
Connected load: 230 V / 400 W
Dimensions: 215 x 68 x 85 cm (WxDxH)
Decide for yourself on the
Configuration of your refrigerated display case,
the positions of the door loading racks
can be freely selected on request.
Please specify when ordering!

€4,878.00 * €6,420.00 *

You save: €1,542.00!

Prices plus VAT plus shipping costs

Available in 2 - 6 weeks

Korpus	1	2	3	4	4
Door/Drawer	1/0	2/0	3/0	4/0	0/8
Door/Drawer	0/2	1/2	2/2	3/2	0/9
Door/Drawer	0/3	1/3	2/3	3/3	0/10
Door/Drawer		0/4	1/4	2/4	0/11
Door/Drawer		0/5	1/5	2/5	0/12
Door/Drawer		0/6	1/6	2/6
Door/Drawer			0/6	1/6
Door/Drawer			0/7	1/7
Door/Drawer			0/8	1/8
Door/Drawer			0/9	1/9

Item n° 0380116

Constant cooling capacity combined with modern design, functionality... mehr

Close menu

Refrigerated Beverage Counter, 3 RE-FK-AG, REGD 314E

Constant cooling capacity combined with modern design, functionality and highest quality! The MAYWAY beverage coolers are convincing behind every counter and are specially equipped for the extreme loads in catering establishments. They are perfect for storing your drinks and can be integrated into the counter to save space. Decide for yourself on the configuration of your refrigerated counter - with stainless steel doors, glass doors, functional drawers, bottle cooler, red wine drawer, beer keg pull-out, ready to plug in or for external cooling. All refrigerated cabinets are insulated with high-quality 5 cm high-density polyurethane foam. Pressure ventilation ensures uniform cooling performance and therefore a constant temperature throughout the interior.

Highlights

Stainless steel inside and out
Constant temperature in the entire interior
Evaporator foamed into the rear wall
No more corrosion damage to the evaporator
No evaporators in the interior, ideal for dispensing technology

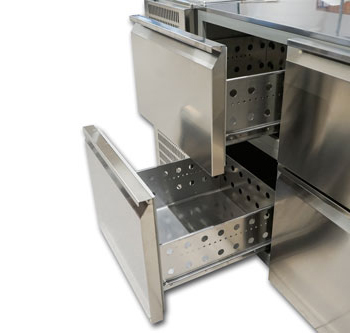

Telescopic drawers max. load capacity 50 kg
Quality telescopic rails
Deep-drawn inner shelf for easy cleaning
Drawers with rounded corners for easy cleaning
Prepared, perforated feed-through channels for beverage lines
Environmentally friendly refrigerant with low GWP
Fully installable thanks to front ventilation and venting
5 cm polyurethane thermal insulation

Product information

incl. 1 door, 4 drawers, with magnetic seal
1 door, clear WxH: 480x740 mm
2 loading racks (2/5+3/5)
Usable drawer height: 270 mm at the top, 370 mm at the bottom

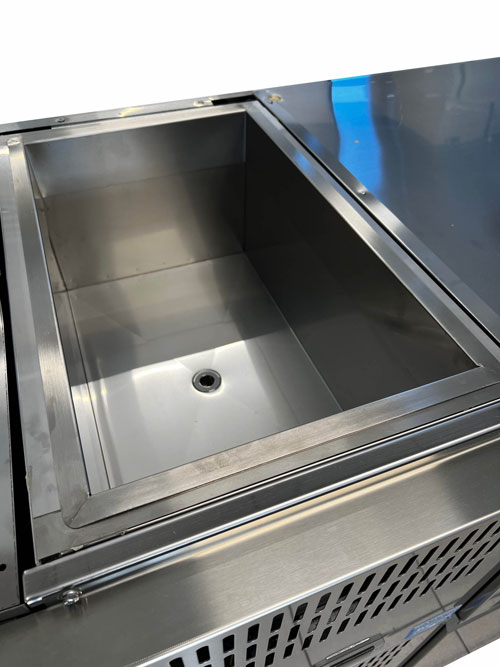

Bottle cooler with plug-in frame
Bottle cooler Basin dimensions WxDxH: 315 x 515 x 250 mm
Unit on the right, ready to plug in
automatic condensation evaporation

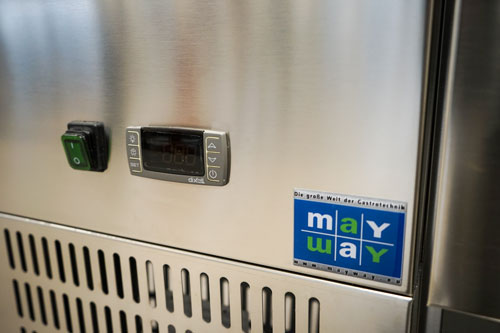

digital temperature control with temperature display

Technical Data

plug-in version
Refrigerant: R455a
Temperature range: +2°/+8°C
Connected load: 230 V / 400 W
Dimensions: 215 x 68 x 85 cm

Additional information of "Refrigerated Beverage Counter, 3 RE-FK-AG, REGD 314E"

Downloads

Download Bedienungsanleitung

Weitere Produkteigenschaften ... mehr

Produkteigentschaften

Temperature (from °C):	+2
Bottle Cooler:	ja
Temperature (to °C):	+8
N° of Doors:	1
N° of Drawers:	4
Cooling Unit:	rechts
Worktop:	nein
Built-in Version:	ja
Power (W):	550
