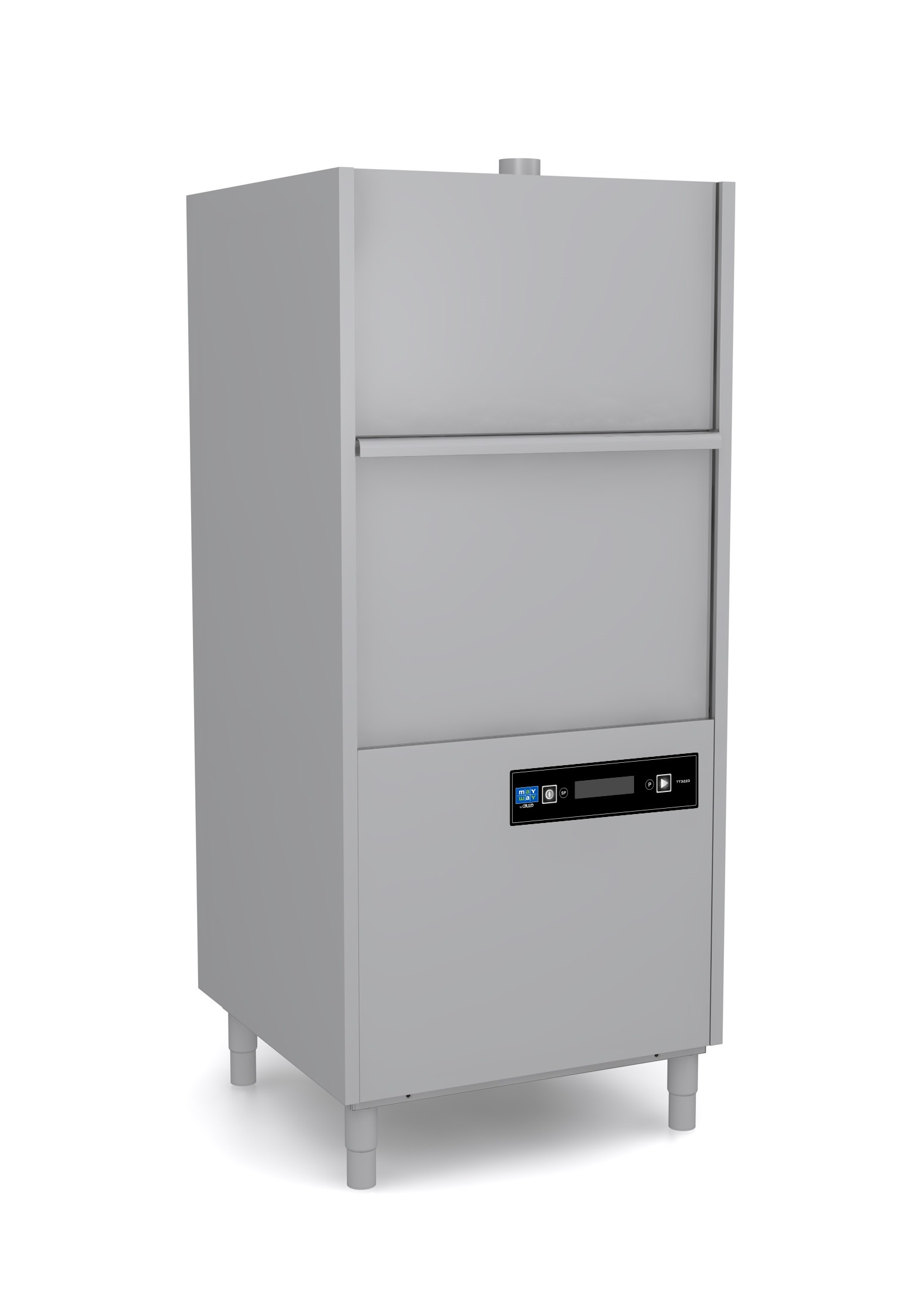

Universal Dishwasher, TOP TECH 32-23D.6

9 main wash programs
7 special wash programs
High performance with thermal disinfection
Wash time: 120 - 720 sec.
Basket size: 70 x 70 cm (WxD)
Connected load: 400 V / 18.7 kW
Dimensions: 85 x 85 x 196 cm (WxDxH)

€13,340.00 * €14,985.00 *

You save: €1,645.00!

Prices plus VAT plus shipping costs

Available in 2 - 6 weeks

Installation: Contact us fo more Information about our flat rates of installation and instruction.

Item n° 4492034

The universal dishwasher TOP TECH 32-23D.6 washes away everything that can occur in... mehr

Close menu

Universal Dishwasher, TOP TECH 32-23D.6

The universal dishwasher TOP TECH 32-23D.6 washes away everything that can occur in commercial kitchens, butcher's shops, bakeries and confectioneries and impresses with its modern and simple operation. With a rack size of 70 x 70 cm and a rack height of 85 cm, the TOP TECH 32-23D Insertion height of 85 cm not only trays and trays can be washed, but also 1/1 gastronorm containers, pots, E2 crates and all kinds of larger wash items. The TOP TECH 32-23D.6 also impresses with its economy and requires only 4.0* liters Liters of fresh water per wash cycle.

Highlights

Insertion height 85 cm
Rinse pump built-in
Drain pump installed
Peristaltic rinse aid dispenser
Peristaltic detergent dosing
DuoFlow patented wash pump, energy-saving and quiet

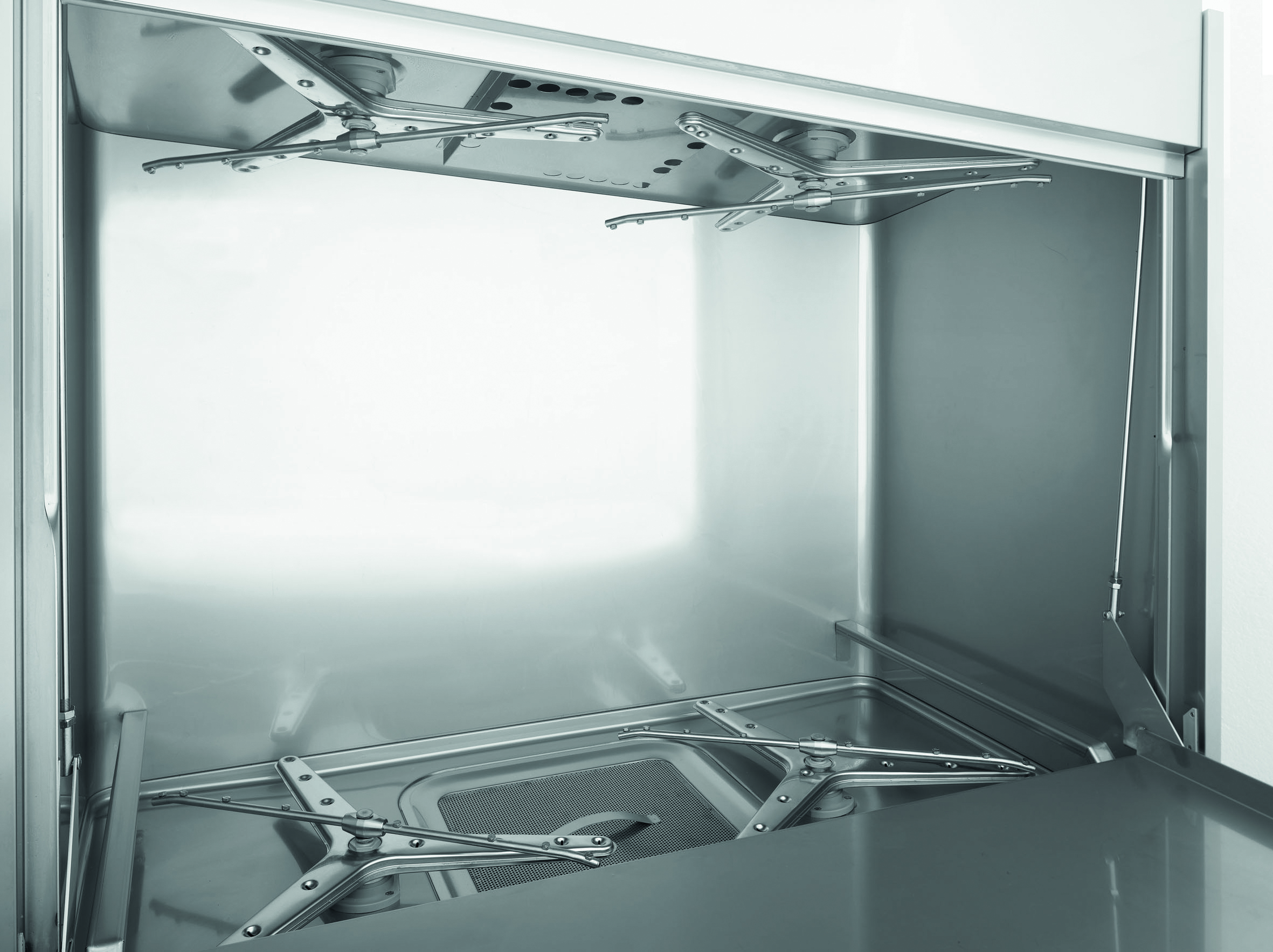

HiTech 3-spoke stainless steel wash arm
Stainless steel rinse arm
UltraRinse₃ Rinsing system up to 60% water saving
ProRinse CRP rinse technology
Evolution² Fine filter system for cleaning the rinse water
ProGressive Triple filtration for permanent cleaning of the wash water
EnergySaving Energy-saving system - temperature reduction in stand-by mode
ProDose rinse control system
HotWash Heating system ensures shorter wash times and improved machine performance
QuickReady Energy management can be switched on to reduce the heating time
ThermoStop rinse control to maintain the rinse temperature
SmartClean design for easy cleaning
ProClean automatic self-cleaning
Self-diagnosis system via LCD display in plain text and symbols
SmartScreen large and multicolored LCD display with soft-touch button
Temperature display via LCD display

Product information

Stainless steel basket: 70 x 70 cm
Made entirely of stainless steel
Double-walled insulated door construction
Balanced door with solid door handle
Double-walled housing construction
Deep-drawn rounded sink basket guide
Deep-drawn tank construction
Electronically controlled rinsing
Break tank system with atmospheric boiler
Large stainless steel tank grids
Safety filter for wash pump
Electronically controlled rinse pump
Electronically controlled rinse aid dosing system
Electronically controlled detergent dosing system
Electronically controlled drain pump
Automatic tank emptying
Wash data recording and cycle counter
Integrated USB interface
Suitable for MAYWAY reverse osmosis or partial demineralization

Technical Data

Theoretical capacity, approx. 30 baskets/h
Wash temperature: 55 - 72°C
Rinse temperature: 80 - 88°C
Water consumption per rinse: 4 - 8 lt.
Insertion height: 85 cm
Tank capacity: 68 lt.
Boiler capacity: 12 lt.
Tank heating: 8000 W
Boiler heating: 8000 W
Washing pump capacity: 2700 W
Connected load: 18,700 W
Power supply: 400 V / 50 Hz / 3 N
Max. Current: 32 A
Water pressure min.-max.: 1 - 4 bar
Water temperature min. - max.: 15 - 60°C
Dimensions: 85 x 85 x 196 cm (WxDxH)

Included Accessories

1 stainless steel flat basket (WxD): 70 x 70 cm
2.5 m inlet hose ¾"
2 m drain hose
Connection cable (400V)
Rinse aid hose length: approx. 2.5 m
Detergent hose length: approx. 2.5 m
4 height-adjustable machine feet

Additional information of "Universal Dishwasher, TOP TECH 32-23D.6"

Downloads

Download Bedienungsanleitung

Weitere Produkteigenschaften ... mehr

Produkteigentschaften

Width:	85 cm
Height:	196 cm
Length:	85 cm
Basket Size:	70 x 70 cm
Built-in Water Softener:	nein
Detergent Dosage:	ja
Drain Pump:	ja
Thermo Disinfection:	ja
Usable Height:	85 cm
